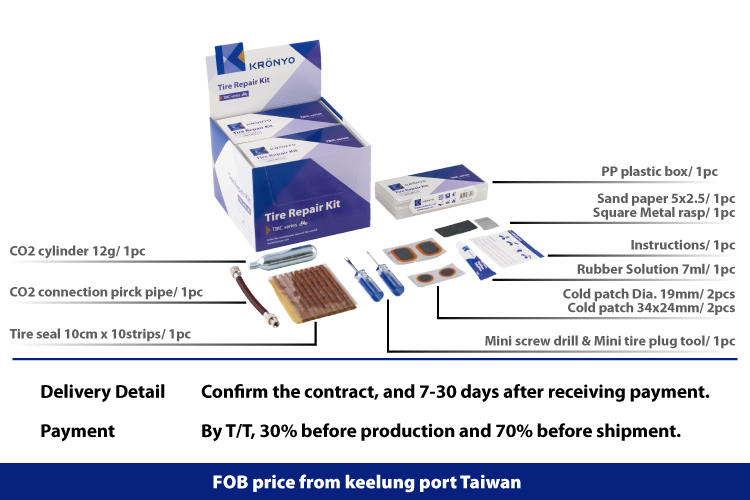

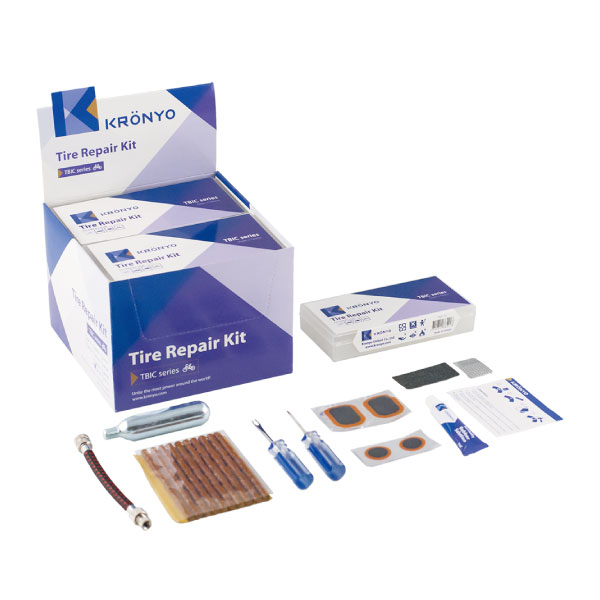

TBIC-03 Tire Repair Kit for Bike

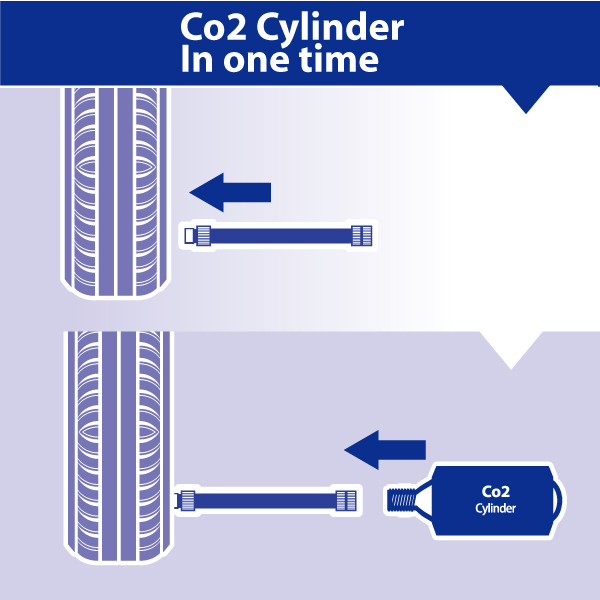

1. Connect the tire & pipe.

2. Prick & fasten the valve directly.

1. Pull out the nail from tire.

2. Clean the injury with the open end inserting tool.Following the direction of the injury and twist.

3. Times in hole inside.

4. Feed the seal string to open end inserting tool. Also using a little of solution on the surface of seal string.

5. Insert the tool by hand into injury through the tire from outside to inside about 1 cm. Then twist it.

Put out the tool directly.

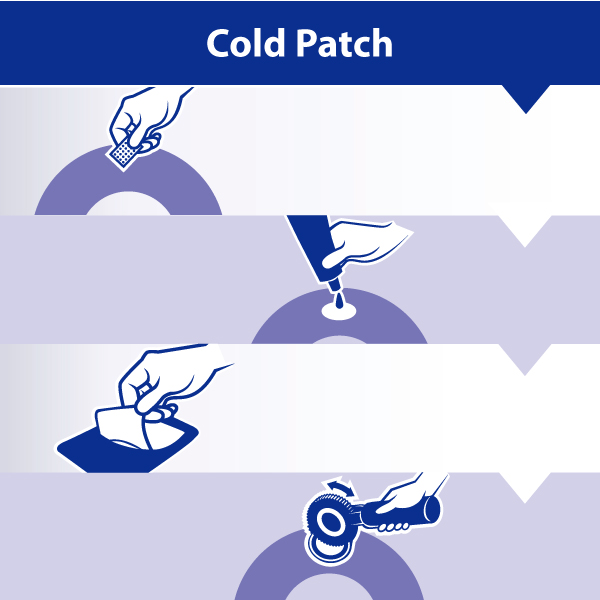

1. Rub off the part to be mended larger then the patch in size.

2. Apply slight rubber solution to the part to be mended.

3. Slowly take off the foil.

4. When the rubber solution dries, paste the patch on the part to be mended and fix the patch with a roller stitch.
